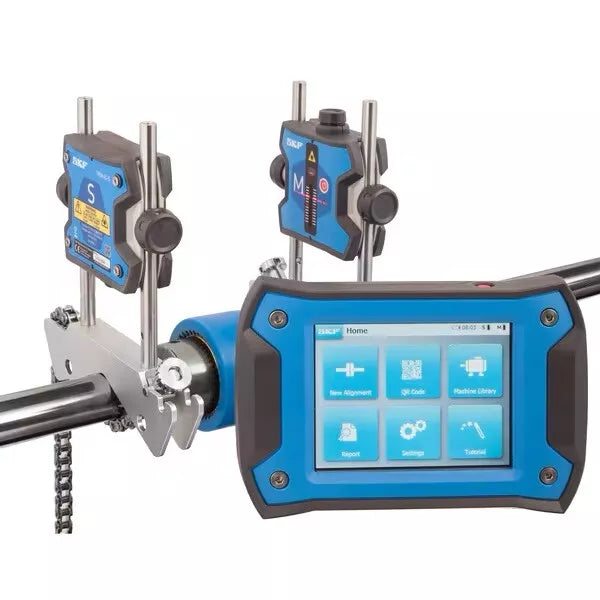

xShaft Alignment Tool TKSA 41 – Precision Laser Alignment with Advanced Features
The SKF TKSA 41 is an advanced laser shaft alignment tool designed to deliver highly accurate alignments, even in challenging conditions. Featuring two wireless measurement units, large detectors, and powerful lasers, this tool ensures precise measurements with ease. Its ergonomic display unit and intuitive touchscreen navigation simplify the alignment process, making the TKSA 41 a top choice for improving alignment practices across industries.
Key Features of the SKF TKSA 41 Shaft Alignment Tool
- Wireless Communication: Enables easy handling and allows safe alignment of hard-to-reach machinery.
- Free Measurement Mode: Start alignment at any angle and complete it with an angular sweep of just 90°, increasing efficiency.
- Automatic Measurement: Hands-free alignment with automatic head position detection for seamless measurements.
- Comprehensive Reporting: Generate automatic, customizable reports with notes and pictures using the built-in camera. Export reports as PDF files for easy sharing and documentation.
- Live View for Intuitive Alignment: Facilitates precise horizontal and vertical alignments with real-time visuals.
- Machine Library: Organize alignment reports and machine details for streamlined operations.
- QR Code Integration: Simplifies machine identification and enhances the alignment workflow.
Why Choose the SKF TKSA 41?
The TKSA 41 shaft alignment tool combines cutting-edge technology with user-focused features, making it one of the most cost-effective solutions for improving alignment accuracy and efficiency. Designed to perform in demanding environments, it provides unmatched reliability and value.

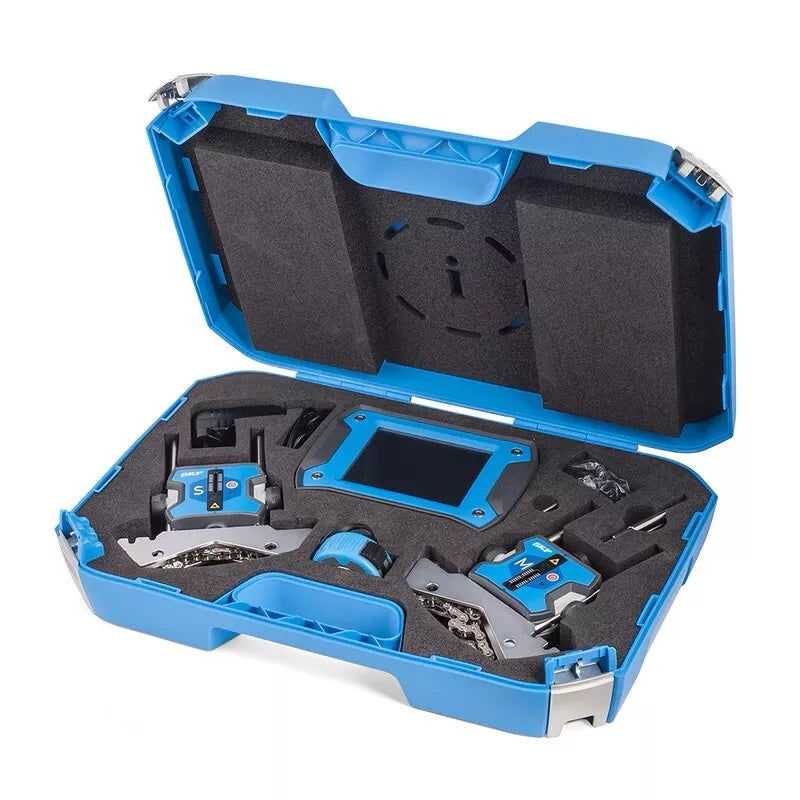

- Supplied in a durable SKF carrying case for protection and portability.
- Compatible with an extensive range of accessories, ensuring versatility for diverse alignment needs.
| Sensors and communication: | 29 mm (1.1 in.) CCD with line laser Class 2 Inclinometer ±0.5°; Bluetooth 4.0 LE and wired, USB cables |
| System measuring distance: | 0,07 to 4 m (0.23 to 13.1 ft) |
| Measuring errors: | <0,5% ±5 µm |
| Housing material: | 20% Glass filled Polycarbonate |
| Operating time: | Up to 16 hours Rechargeable LiPo battery |
| Dimensions: | 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.) |
| Weight: | 220 g (0.5 lb) |
| Operating device: | 5.6" colour resistive touchscreen LCD display. High Impact PC/ABS with over mould |
| Software/App update: | via USB stick |
| DU Operating time: | Up to 8 hours (100% backlight) |
| Alignment method: | Alignment of horizontal shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 90° rotation), soft foot |
| Live correction values: | Vertical and horizontal |
| Extra features: | Machine library, screen orientation flip, automatic .pdf report. |
| Fixture: | 2× V-brackets with chains, width 21 mm (0.8 in.) |
| Shaft diameters: | 20 to 150 mm (0.8 to 5.9 in.) 300 mm (11.8 in.) with optional extension chains (not included) |
| Max. coupling height * | 105 mm (4.2 in.) with standard rods 195 mm (7.7 in.) with optional extension rods (not included) |
| Power adapter: | Input: 100V-240V 50/60Hz AC power supplier Output: DC 12V 3A with EU, US, UK, AUS adapters |
| Operating temperature: | 0 to 45 °C (32 to 113 °F) |
| IP rating: | IP 54 |
| Carrying case dimensions: | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) |
| Total weight (incl. case): | 4,75 kg (10.5 lb) |
| Calibration certificate: | Supplied with 2 years validity |
| Case content: |
2 measuring units (M&S) |
SPARE PARTS
| Designation | Description |
| TKSA 41-QR | 5x A5 sheets with 6x QR codes per sheet (total of 30x unique stickers) |
| TKSA 41-DU | Display unit for the TKSA 41 (incl. 2x USB adapters) |
| TKSA 41-M | Measuring unit "M" (movable) for TKSA 41 (incl. 1x USB Cable and 1x USB adapter) |
| TKSA 41-S | Measuring unit "S" (stationary) for TKSA 41 (incl. 1x USB Cable and 1x USB adapter) |
| TKSA 41-STDCH | 2x 400 mm (15.8 in) standard chains for TKSA 31/41 |
| TKSA ROD90 | 4x 90 mm (3.5 in) rods threaded for TKSA 31/41/60/80 |
| TKSA VBK | 2x Standard V-brackets (No rods, no chain supplied) for TKSA 31/41/60/80 |
| TKSA TOMMYBAR | 1x Tommy bar for TKSA 31/41/60/80 |
| TKSA EXTCHARG | 1x Power supply with EU, US, UK, AUS adapters for TKSA 31/41/60/80 |
| TDTC 1/C | Toolcase without inlay |
