BGR UCF207-20 Pillow Block Bearing – 4-Bolt Square Flange, 1-1/4" Bore
$39.99
Vendor: Gurbuz Bearings - Bgr Global
BGR UCF207-20 Pillow Block Bearing – 4-Bolt Square Flange, 1-1/4" Bore
$39.99
Description

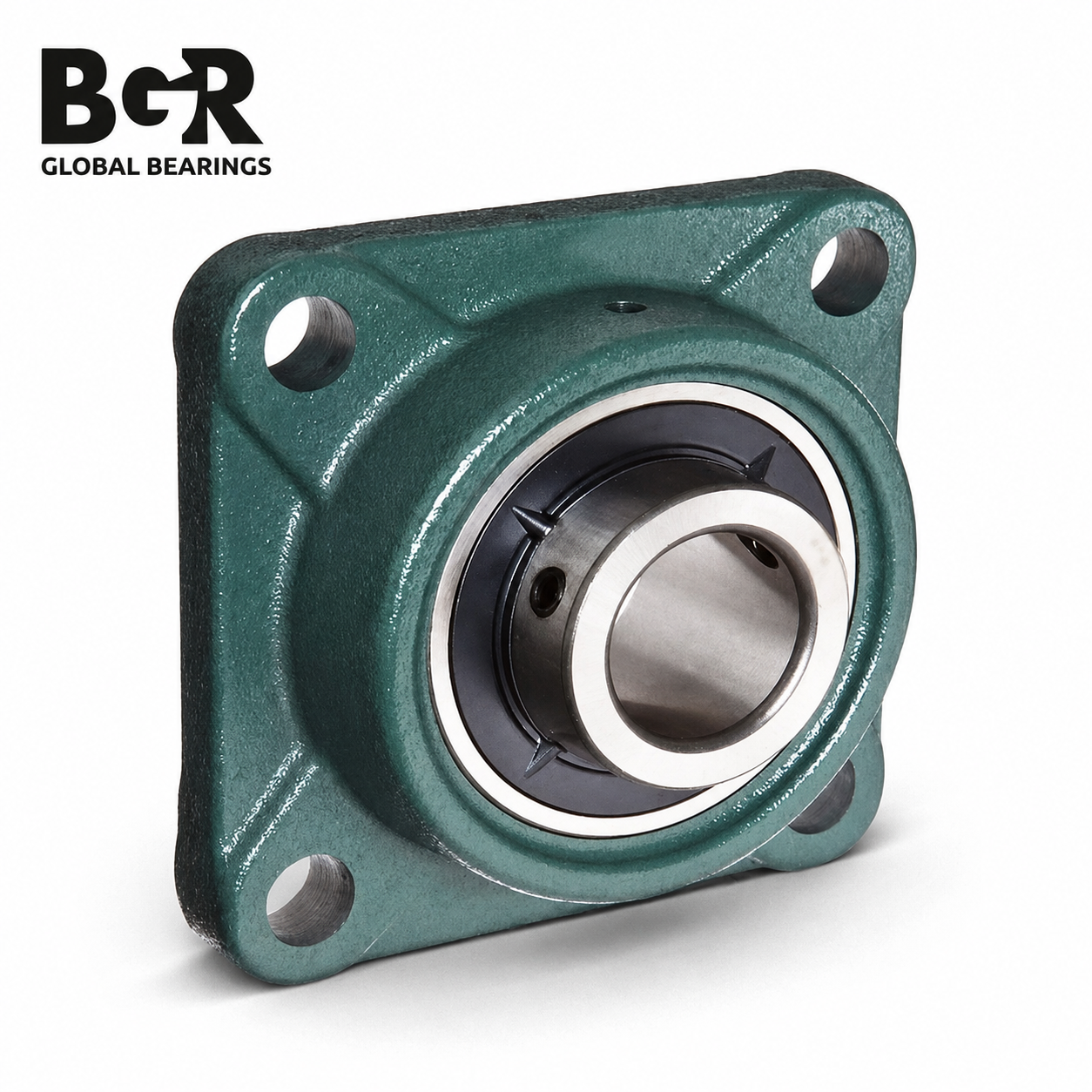

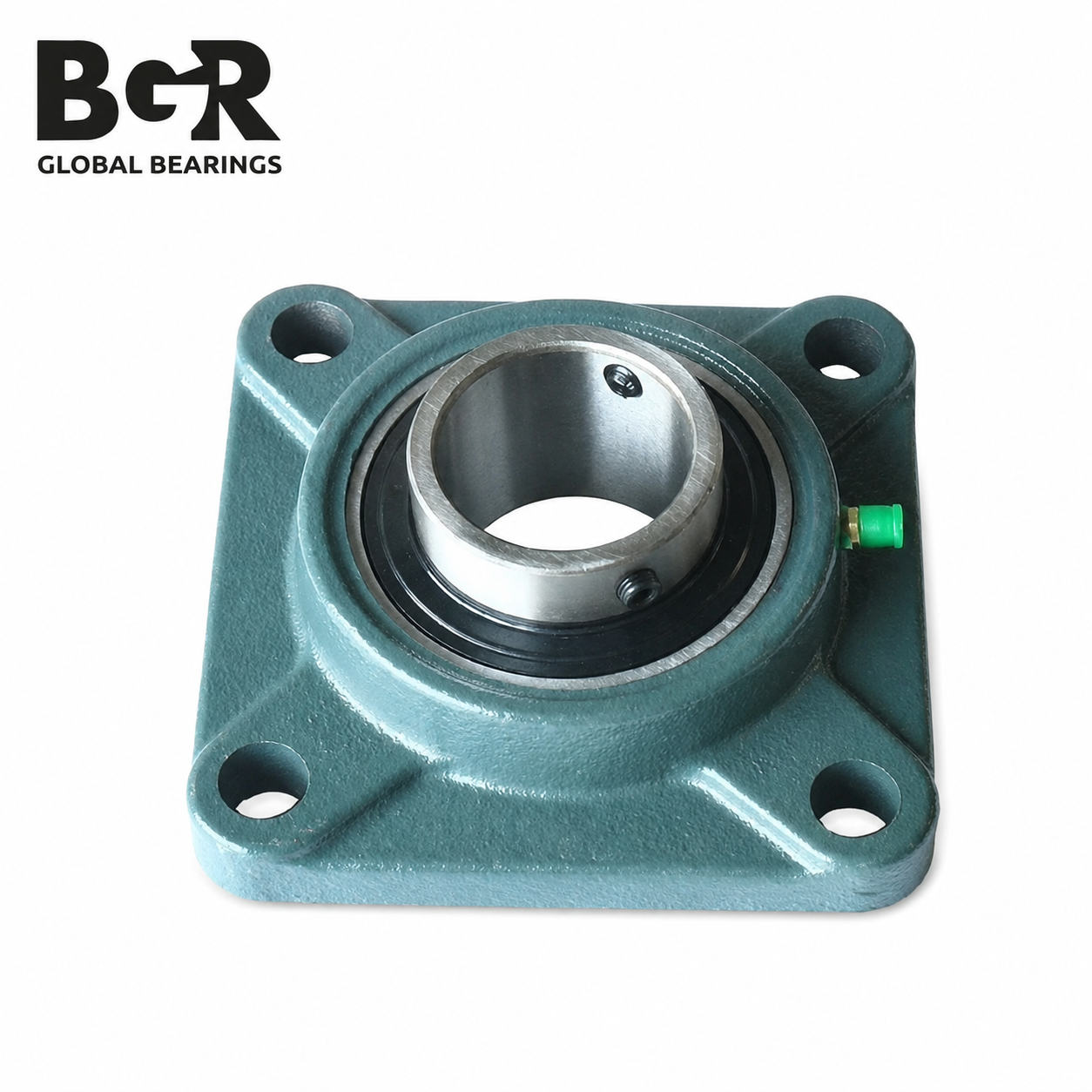

xBGR UCF207-20 Square Flange Mounted Bearing
The BGR UCF207-20 is a complete four-bolt square flange mounted bearing unit designed for dependable support of 1-1/4-inch shafts. Its durable cast iron housing provides a stable mounting base for industrial, agricultural, and material-handling equipment.
The self-aligning UC207-20 bearing insert helps accommodate minor shaft misalignment, while the set screw locking system securely fastens the bearing to the shaft. A built-in grease fitting allows for convenient relubrication during routine maintenance.

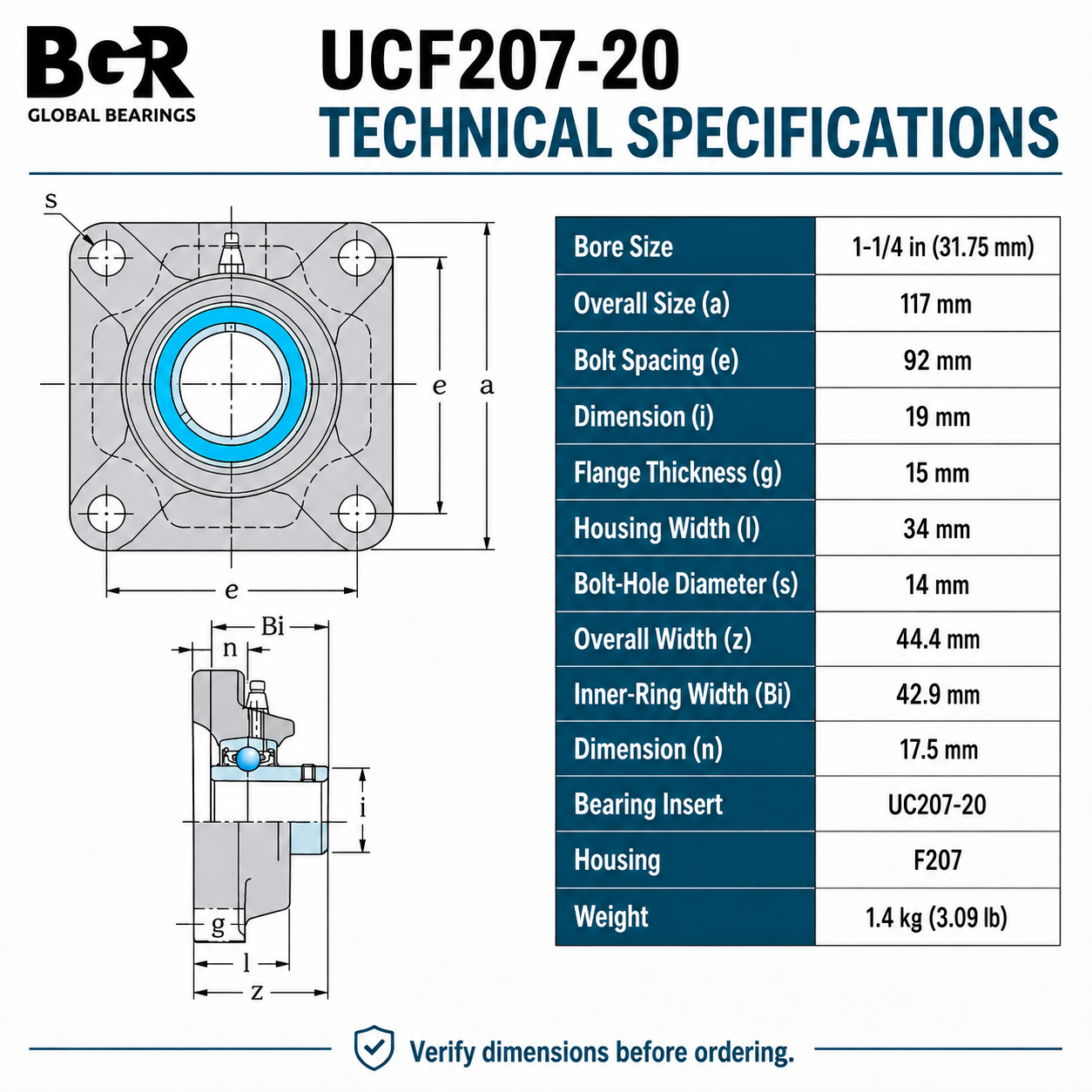

Product Specifications
| Brand | BGR Global Bearing |
|---|---|
| Model | UCF207-20 |
| Bearing Insert | UC207-20 |
| Housing Number | F207 |
| Bore Size | 1-1/4" (31.75 mm) |
| Housing Style | Four-Bolt Square Flange |
| Housing Material | Cast Iron |
| Overall Housing Size | 117 × 117 mm (4.61" × 4.61") |
| Bolt-Hole Center Spacing | 92 mm (3.62") |
| Bolt-Hole Diameter | 14 mm (0.55") |
| Overall Unit Width | 44.4 mm (1.75") |
| Unit Weight | 1.4 kg (3.09 lb) |
Built for Dependable Shaft Support

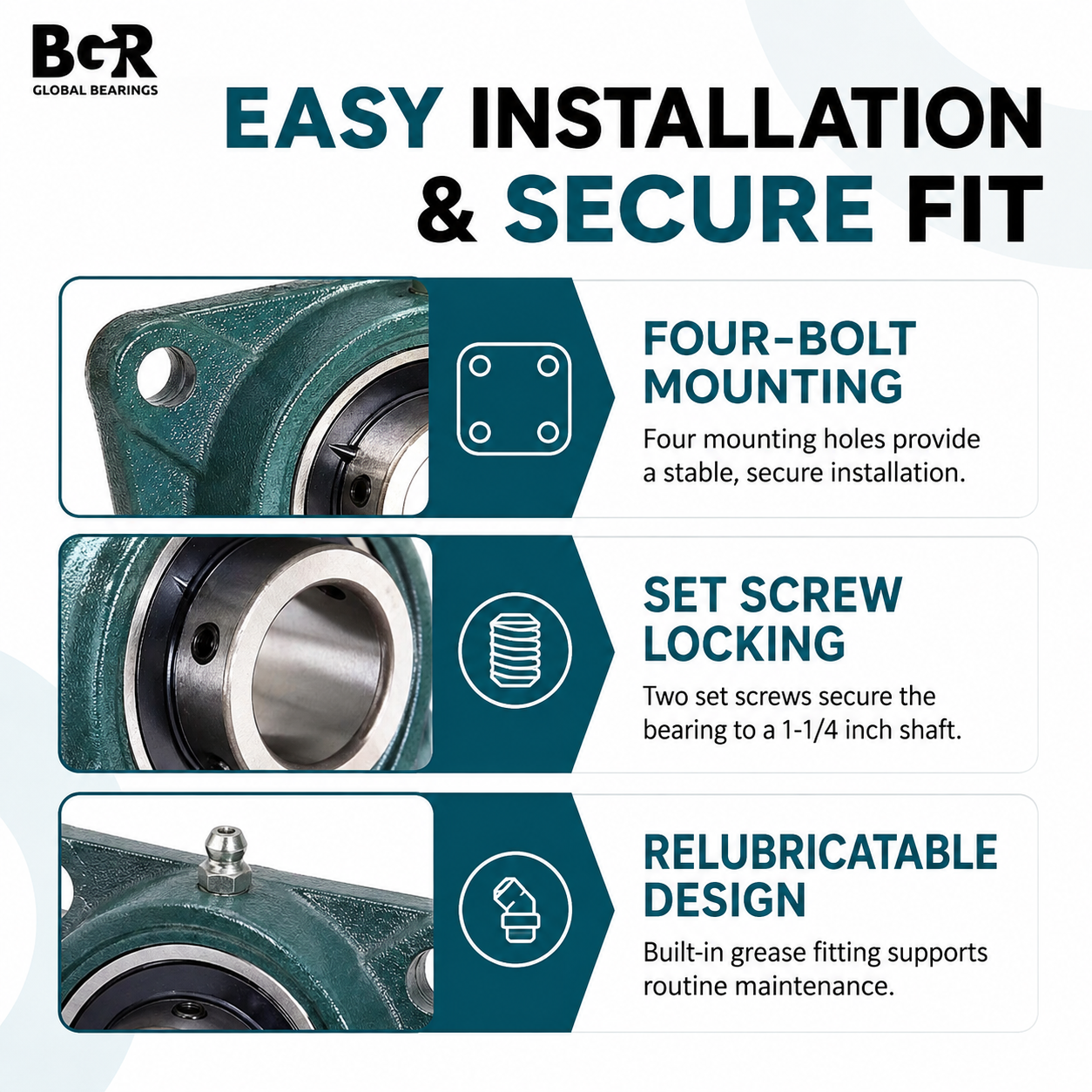

The four-bolt square flange housing provides a secure and stable mounting surface. Its cast iron construction is suited for equipment exposed to vibration, continuous operation, and demanding working environments.
Self-Aligning Bearing Insert
The mounted UC207-20 insert can accommodate minor shaft misalignment, helping the bearing operate smoothly when properly installed.
Secure Set Screw Locking
Two set screws on the extended inner ring secure the bearing to the shaft and help prevent unwanted movement during operation.
Relubricatable Design
An integrated grease fitting makes routine relubrication straightforward and helps support consistent bearing performance and service life.
Recommended Applications
- Conveyor systems
- Agricultural machinery
- Material-handling equipment
- Industrial processing machinery
- Packaging and production equipment
- Recycling equipment
- General power-transmission systems
Key Features
- Complete UCF207-20 mounted bearing assembly
- Four-bolt square flange mounting design
- Fits 1-1/4-inch diameter shafts
- Durable cast iron housing
- Self-aligning UC207-20 bearing insert
- Two set screws for secure shaft locking
- Grease fitting for routine relubrication
- Replaceable bearing insert
Package Includes
One BGR UCF207-20 square flange mounted bearing unit.
Before Ordering
Please confirm the 1-1/4-inch bore and mounting dimensions listed above to ensure compatibility with your shaft and equipment. Proper installation, shaft alignment, and lubrication are recommended for reliable operation.
